GABINETE |
|
SOPORTE DE FORMATO DE PLACA MADRE |
ATX / mATX / Mini-ITX
|
PRODUCTO |

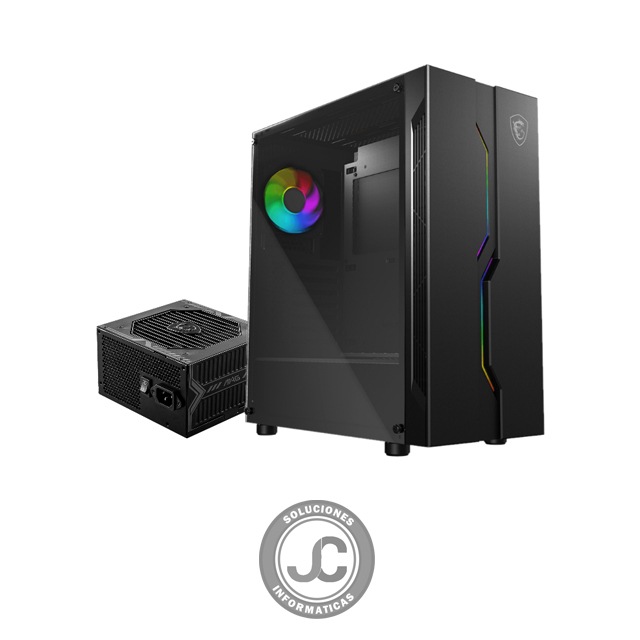

MAG VAMPIRIC 010
|
DIMENSIONES |
420(D) x 210(W) x 475(H) mm
|
16.54(D) x 8.27(W) x 18.70(H) pulgadas | |
PESO |
4.1 KG
|
PUERTOS E/S |
1 x USB 3.0 + 2 x USB 2.0 + HD Audio / Mic
|
BAHÍAS PARA DRIVERS |
2 x 3.5" (compatible con 2.5”) + 2 x 2.5"
|
SLOTS DE EXPANSIÓN GABINETE |
6
|
VENTILADOR PREINSTALADO |
1 x 120 mm addressable RGB LED FAN included
|
LONGITUD MÁXIMA DE LA FUENTE |
200mm
|
DISTRIBUCIÓN RADIADOR |
Front: up to 360 mm
|
Top: up to 240 mm | |
Rear: 1 x 120 mm | |
LONGITUD MÁXIMA DE GPU |
350 mm
|
LONGITUD MÁXIMA DEL COOLER DE CPU |
167 mm
|
LIGHTNING |
RGB direccionable
|
FUENTE DE ALIMENTACIÓN |
ATX estándar
|
COOLING LAYOUT |
Front: 3 x 120 or 3 x 140 mm
|
Top: 2 x 120 mm or 2 x 140 mm | |
Rear: 1 x 120 mm | |
1 x 120mm addressable RGB LED FAN included | |
FUENTE |
|
PRODUCT NAME |
MAG A550BN
|
FORM FACTOR |
ATX
|
RATED WATTAGE |
550W
|
EFFICIENCY RATING |
80 PLUS Bronze (up to 85%)
|
MODULAR |
No
|
FAN SIZE |
120 mm
|
FAN BEARING |
Sleeve Bearing
|
DIMENSIONS (DXWXH) |
140 x 150 x 86 mm
|
PFC TYPE |
Active PFC
|
INPUT VOLTAGE RANGE |
100~240 VAC
|
INPUT FREQUENCY RANGE |
50~60 Hz
|
PROTECTION |
OCP / OVP / OPP / OTP / SCP
|
ATX (24 PIN) |
1
|
EPS (8 PIN) |
1
|
PCI-E (6+2 PIN) |
2
|
SATA (15 PIN) |
5
|
MOLEX (4 PIN) |
2
|
FDD (4 PIN) |
1
|
