| MODEL NAME |

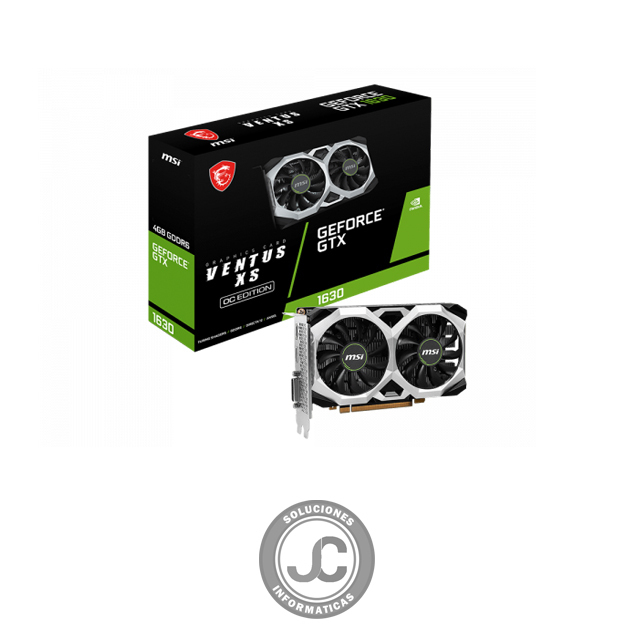

GeForce® GTX 1630 VENTUS XS 4G OC
|
| GRAPHICS PROCESSING UNIT |
NVIDIA® GeForce® GTX 1630
|
| INTERFACE |
PCI Express x16 3.0
|
| CORE CLOCKS |
Boost: 1815 MHz
|
| CUDA® CORES |
512 Units
|
| MEMORY SPEED |
12 Gbps
|
| MEMORY |
4GB GDDR6
|
| MEMORY BUS |
64-bit
|
| OUTPUT |
DisplayPort x 1 (v1.4a)
|
| HDMI x 1 (Supports 4K@60Hz as specified in HDMI 2.0b) | |
| DL-DVI-D x 1 | |
| HDCP SUPPORT |
Y
|
| POWER CONSUMPTION |
75 W
|
| RECOMMENDED PSU |
300 W
|
| CARD DIMENSION (MM) |
178 x 112 x 39 mm
|
| WEIGHT (CARD / PACKAGE) |
446 g / 656 g
|
| DIRECTX VERSION SUPPORT |
12 API
|
| OPENGL VERSION SUPPORT |
4.6
|
| MAXIMUM DISPLAYS |
3
|
| G-SYNC® TECHNOLOGY |
Y
|
| DIGITAL MAXIMUM RESOLUTION |
7680 x 4320
|
